Sztereó rádióerősítő

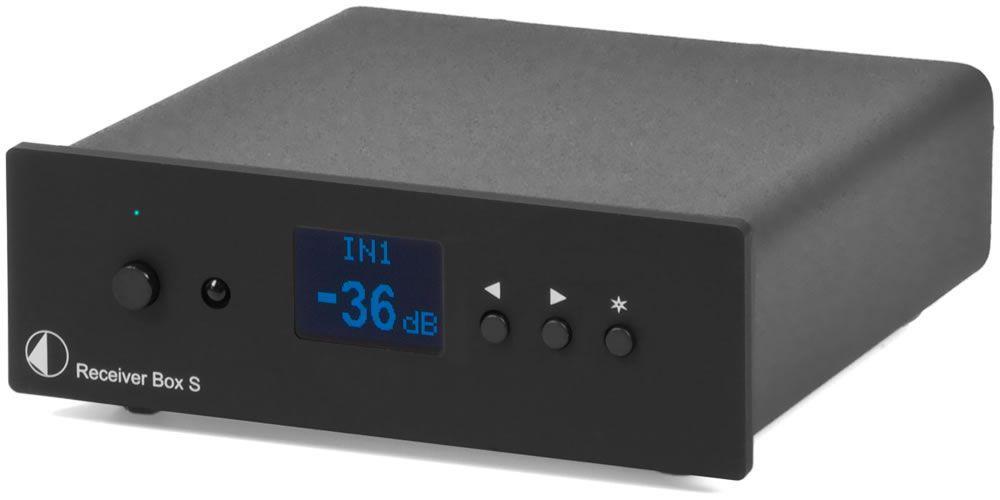

A Pro-Ject Receiver Box S egy D-osztályú rádióerősítő
2x25 W/8 Ohm kimenő teljesítménnyel, külső DC tápegységgel.

Power output 2x 25W/30W at 8 / 4 ohms
(both channels driven)
Tuning range FM-band 87,5 - 108MHz (50kHz steps)
Programmable presets 99
THD tuner 0,05% / Δf 75kHz and f mod 1kHz
Stereo separation 30dB / Δf 75kHz and f mod 1kHz
Sensitivity 7dB/µV mono, 17dB/µV stereo /75 ohms
Frequency response 20Hz - 20kHz (±0,2dB)
Channel separation > 40dB at 20kHz
Noise floor > -100dB (A weighted)
THD amplifier < 0,005% at 10W
Gain 22dB

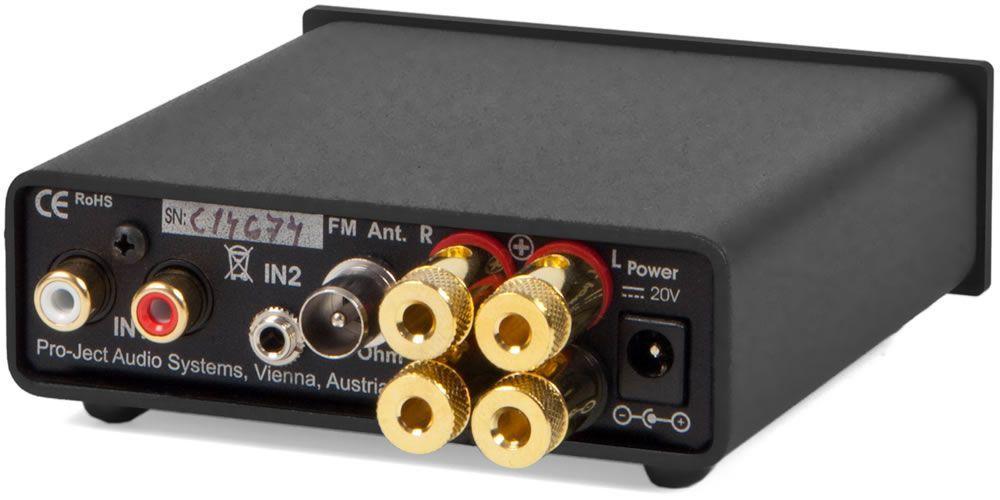

Line-level inputs 1 pair RCA/phono sockets
3-pole 3,5mm co-axial jack
Input impedance 20kohms
Antenna input 1x co-axial DIN-socket (75 ohms)
Outboard power supply 20V/3A DC (peak 7A DC)
Power consumption standby < 1 Watt
Dimension W x H x D 103 x 36 x 104 (122)mm (D with sockets)
Weight 670g without power supply
