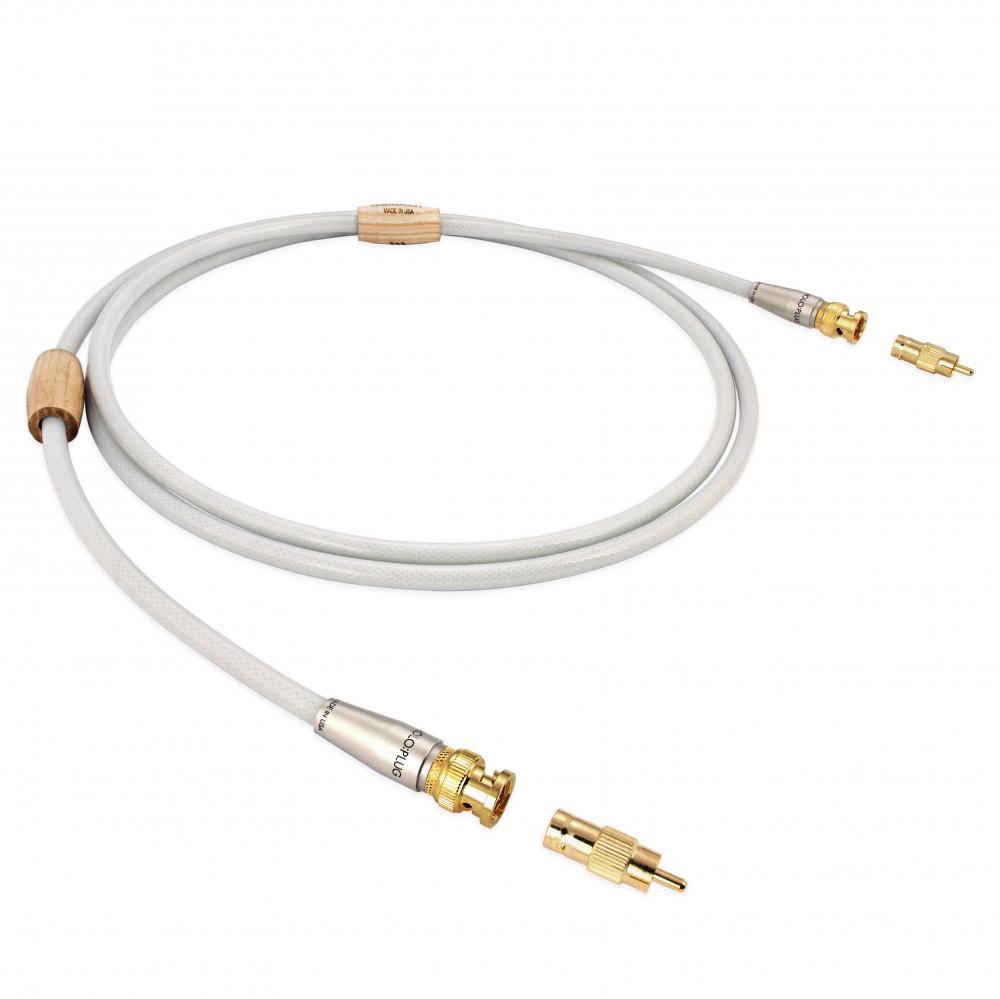

Nordost Valhalla 2 Reference Digitális összekötő kábel BNC-BNC 75 Ohm /2 méter/
Digital signals are subject to extremely precise transmission and termination standards. Ensuring that your digital cables meet those standards is vital to achieving the best possible performance from high-resolution digital systems. Valhalla 2 Digital Interconnects employs our advanced Dual Mono-Filament construction to mechanically dampen its silver-plated, solid copper conductors, while also reducing dielectric contact by over 85%.
- 75 OHM SPECIFICATIONS
- Insulation: High purity class 1.1 extruded Fluorinated Ethylene Propylene (FEP)
- Construction: Mechanically tuned spacing, length and Dual Mono-Filament, Co-axial design
- Conductors: 1 x 16 AWG
- Material: Silver-plated 99.999999% solid core OFC
- Capacitance: 15.3pF/ft
- Impedance: 75 Ohm
- Overall Shield Coverage: 98% Total coverage with 2 layers of silver-plated shielding
- Velocity of Propagation: 89%
- Termination: Gold-plated true 75 Ohm HOLO:PLUG® BNC. Gold-plated BNC to RCA adapter included.
